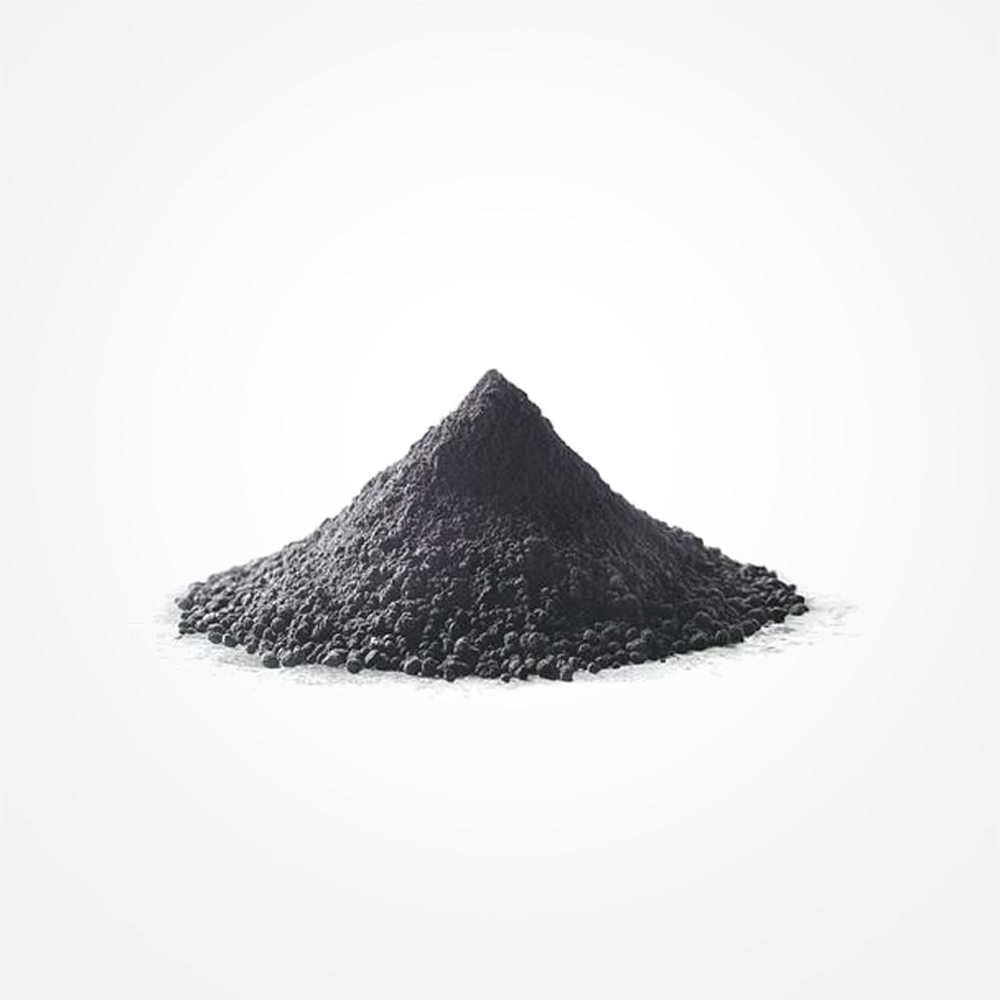

 Tungsten powder  Tungsten powder
Tungsten powder
Tungsten powder is one of the important raw materials for preparing powdered tungsten and its alloy products. It has the highest melting point (3410°C) and the lowest vapor pressure among all metals, which makes it the preferred metal for various high-temperature operating environments .
Application: Powdered metal tungsten is the raw material for preparing tungsten processing materials, tungsten alloys and tungsten products;
Technical specifications: ordinary W≥99.95%

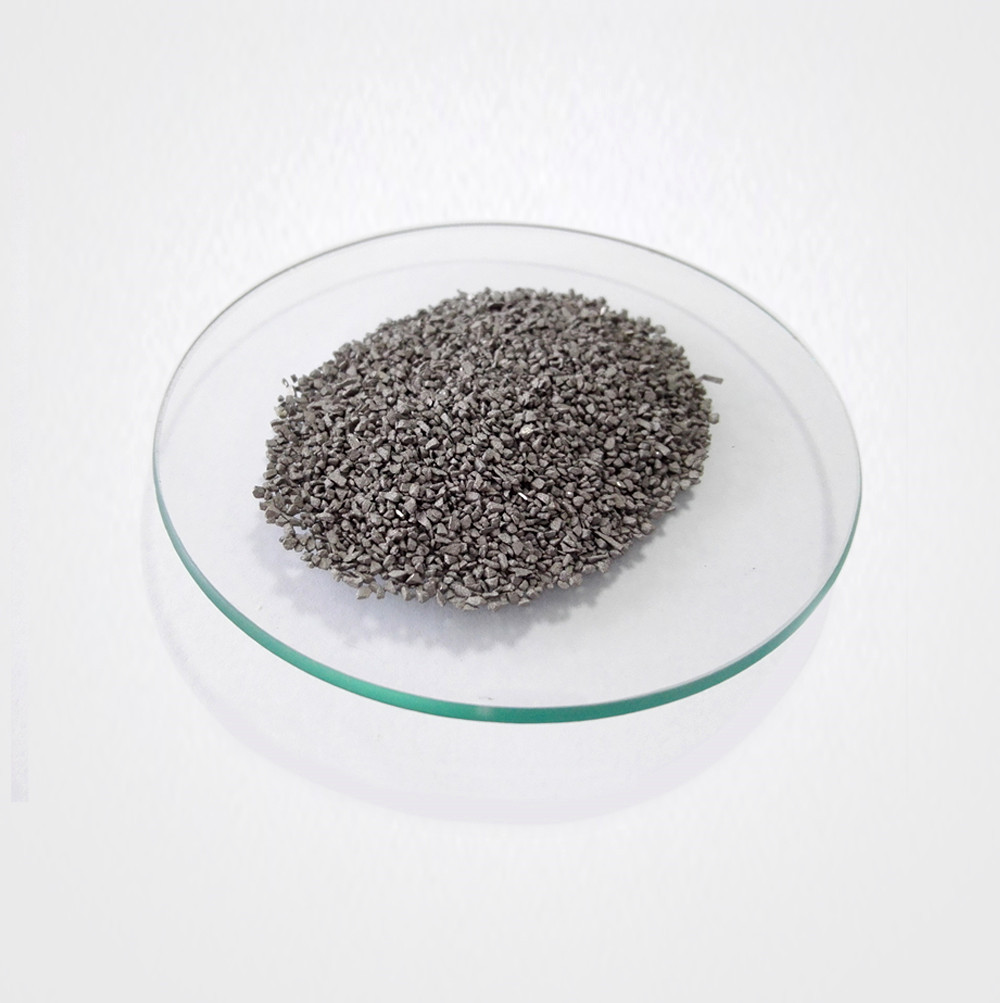

 Tungsten particles  Tungsten particles
Tungsten particles
Application: Flux for high frequency combustion in high frequency infrared carbon and sulfur analyzer. It has good fluxing effect and very stable analysis results.
Chemical composition: W≥99.95%
Magazine content: C≤0.0008%; S≤0.0005%
Product specifications: The product size is 20-40 mesh, and it can also be customized according to customer needs.
 High specific gravity tungsten alloy  High specific gravity tungsten alloy
High specific gravity tungsten alloy
High specific gravity tungsten alloy material is a kind of alloy with tungsten as the matrix (W content 85-99%) and added with elements such as Ni, Cu, Co, Mo, Cr. According to alloy composition characteristics and uses, it can be divided into main series such as W-Ni-Fe, W-Ni-Cu, W-Co, W-WC-Cu, W-Ag, and its density is between 16.5-19.0g/cm3 Adjustable. Generally, large and special-shaped parts are produced by isostatic pressing technology, small products are produced by mould pressing, extrusion and injection moulding technology, and bars and sheets are produced and processed by forging and rolling.

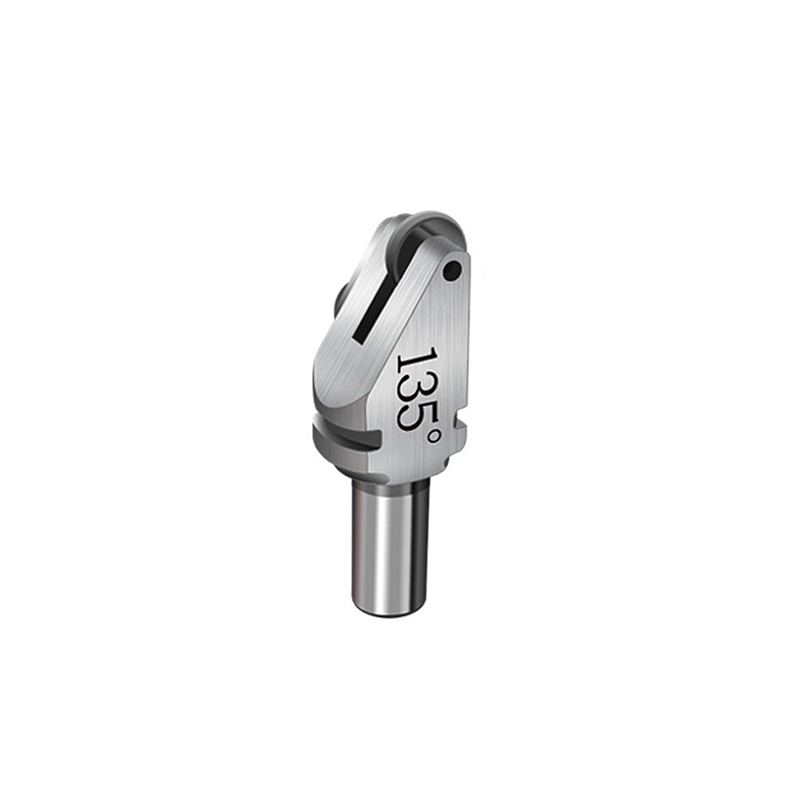

 Cemented carbide - tungsten steel(Glass automatic cutting machine tool head)  Cemented carbide - tungsten steel(Glass automatic cutting machine tool head)
Cemented carbide - tungsten steel(Glass automatic cutting machine tool head)
The cutter head of automatic glass cutting machine is composed of carbide cutter wheel and stainless steel tool rest. Cemented carbide cutting wheel is made of cemented carbide blank produced by the world's most advanced ultrafine powder technology by 5-axis CNC machine tool with 7 fine grinding, with sharp and smooth cutting, neat incision, deep, high precision, high hardness, long cutting life and other characteristics. Applicable to float glass, lattice glass and other glass production lines and glass deep processing line used automatic cutting machine efficient cutting.
 High purity tungsten powder  High purity tungsten powder
High purity tungsten powder
Specification: -200 mesh
Purity: 4N-6N
Uses: Used to prepare high-purity tungsten targets and high-purity tungsten alloy targets, to prepare cemented carbide tools, powder metallurgy, diamond tools, high-density alloys, contacts, refractory alloys. Tungsten alloys, such as tungsten molybdenum alloy, tungsten rhenium alloy, tungsten copper alloy and high density tungsten alloy, etc.

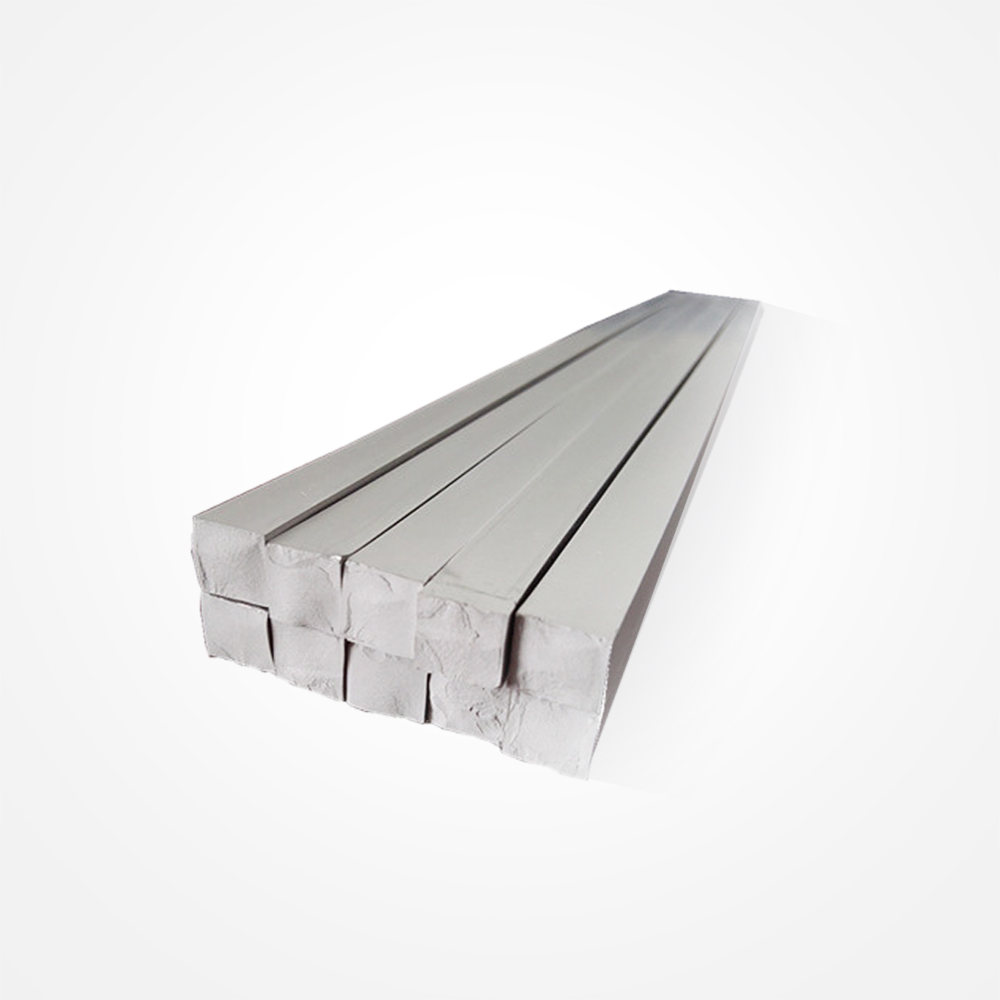

 Tungsten rod,tungsten bar  Tungsten rod,tungsten bar
Tungsten rod,tungsten bar
The powder metallurgy method is used for pressure sintering and the material is dense.
Application: suitable for processing ion implantation parts, manufacturing electric light sources and electric vacuum parts, used as high-temperature heating elements and high-temperature structural parts, and used as electrodes in the rare earth industry

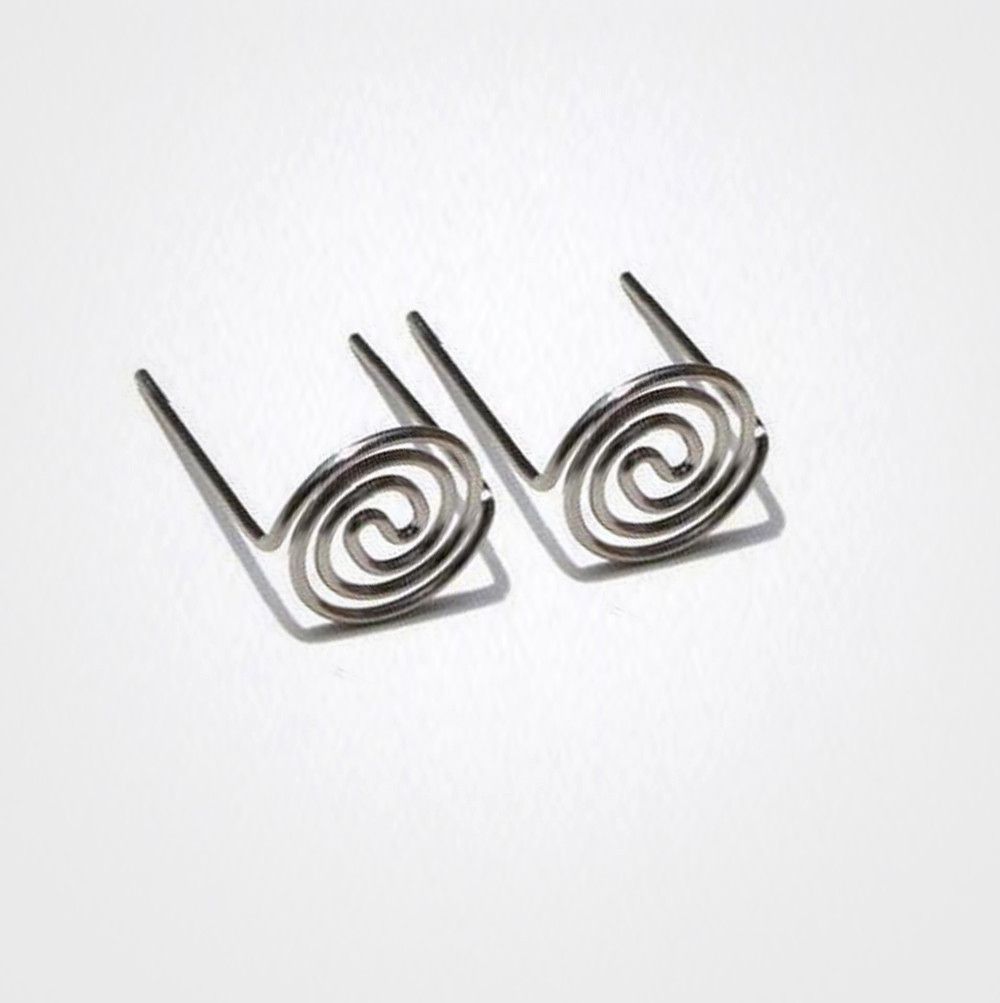

 Tungsten wire  Tungsten wire
Tungsten wire
Tungsten wire is made of pure tungsten powder sintered into strips by powder metallurgy, and then drawn. Tungsten aluminum wire commonly used for high temperature and shockproof filament, double helix filament, grid cathode, folded filament, tungsten twisted wire and other parts; plating a layer of gold on the surface of the tungsten wire can increase the corrosion resistance and oxidation resistance of the tungsten wire , Often used as electrode wire of copiers, corrosive electron emission materials, high temperature physics and meteorological instrument materials, etc.
Uses: Manufacturing electric light sources and electric vacuum parts, used as high-temperature heating elements and high-temperature structural parts, and used to make tungsten spirals for vacuum evaporation.

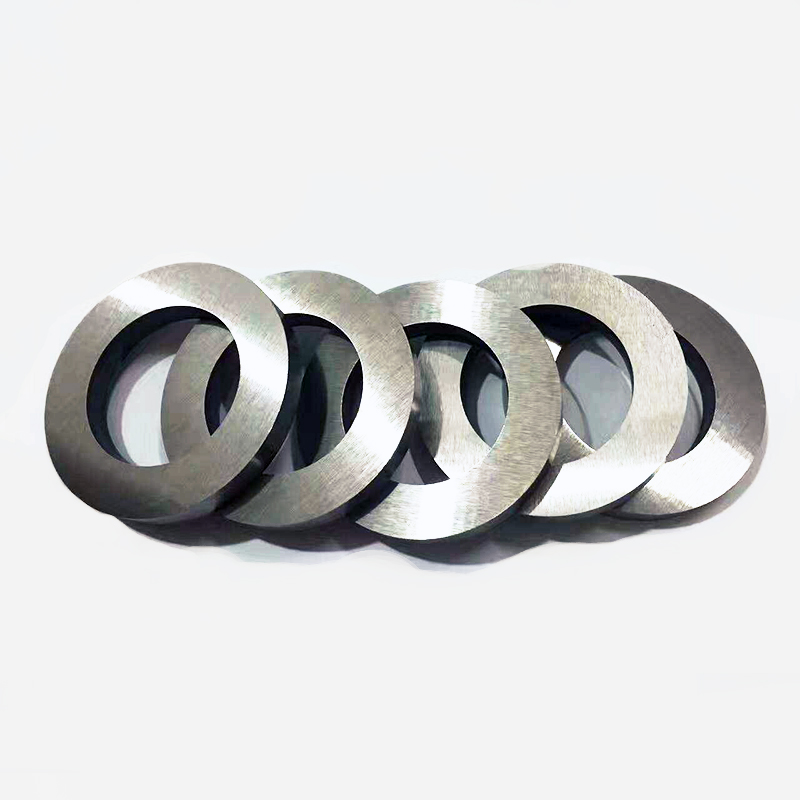

 Tungsten middle  Tungsten middle
Tungsten middle
The high-purity tungsten plate is used for slow wire cutting to ensure the stable high-temperature performance and finished size of the tungsten middle ring.
Thickness range: 1.2-2.4mm or customized according to customer requirements

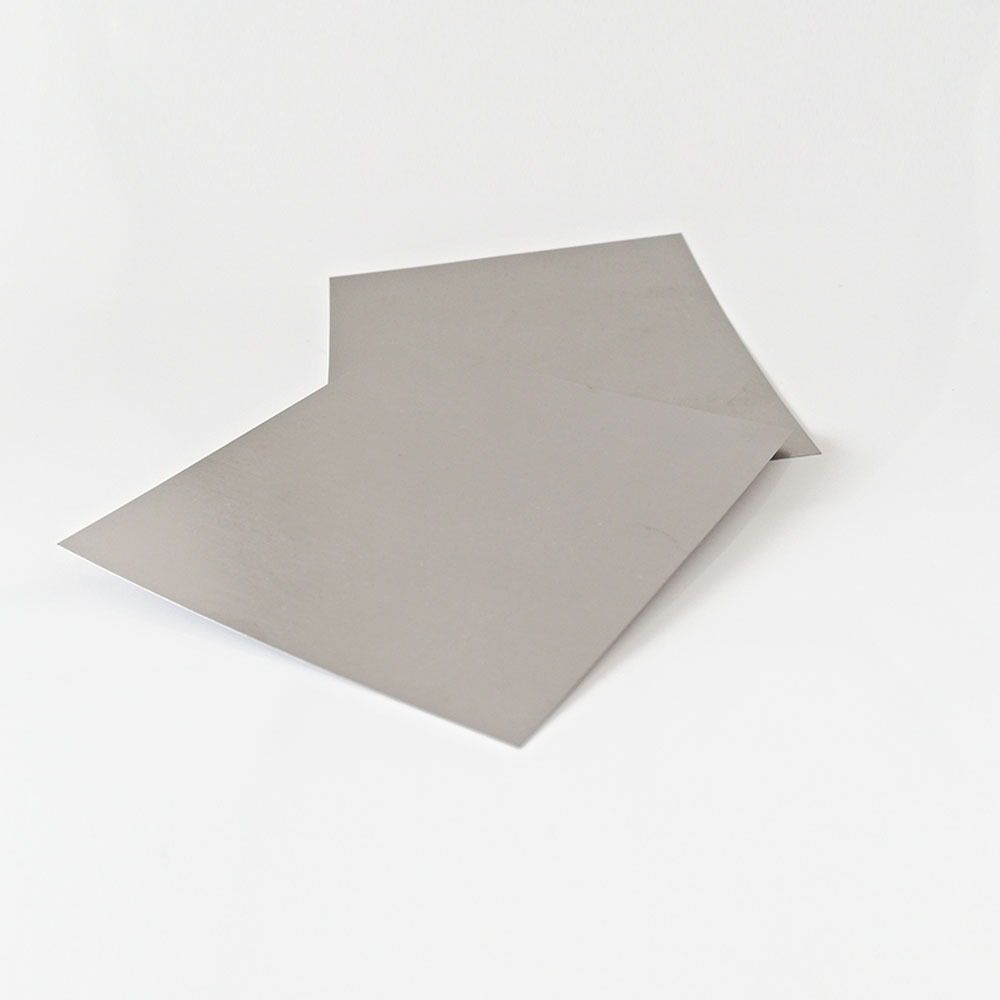

 Tungsten plates, tungsten sheets  Tungsten plates, tungsten sheets
Tungsten plates, tungsten sheets
Tungsten plates, tungsten sheets and tungsten targets are usually produced into compacts by powder metallurgy and then heated and forged at high temperatures. Depending on the processing technology and surface treatment, they appear gray-black or bright silver. After rolling with a deformation of more than 60%, the density of the tungsten plate is basically close to the theoretical density of tungsten. Therefore, it has high strength, uniform internal structure and excellent high temperature creep resistance.
 High purity tungsten target  High purity tungsten target
High purity tungsten target
1. Purity: 99.99%; 99.999%
2、Density:  ≥19.1g/cm3;
3、Flatness:≤2%;

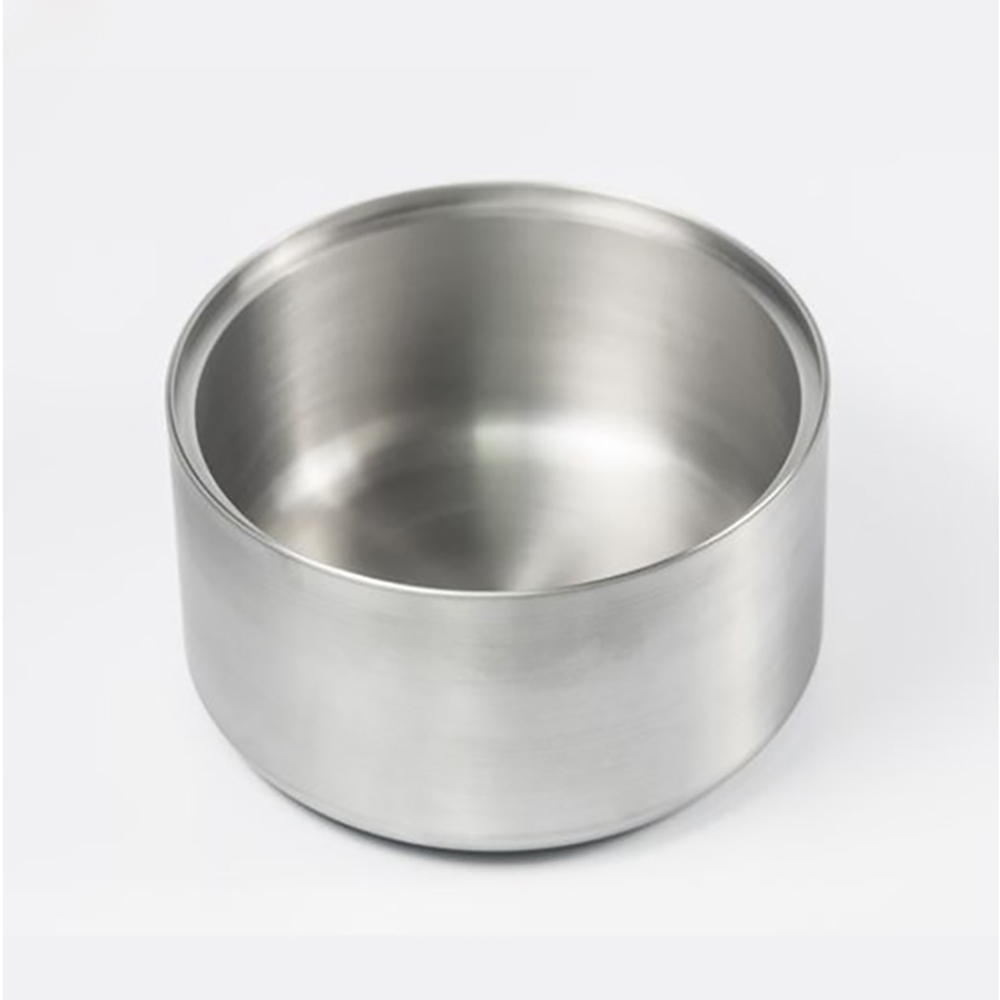

 Tungsten crucible  Tungsten crucible
Tungsten crucible
Because tungsten has a melting point of 3410°C, high purity, high density, no internal cracks, precise dimensions, and smooth inner and outer walls, it is widely used in sapphire single crystal growth furnaces, quartz glass melting furnaces, rare earth smelting furnaces and other industrial furnaces The working temperature environment of the core container inside is generally above 2200℃. The tungsten crucible plays a key role in the success rate of seeding, the quality control of crystal pulling, the potting and the service life of sapphire crystal growth.
Application: Mainly used in metallurgical industry, mechanical processing, glass and ceramic industry and other fields

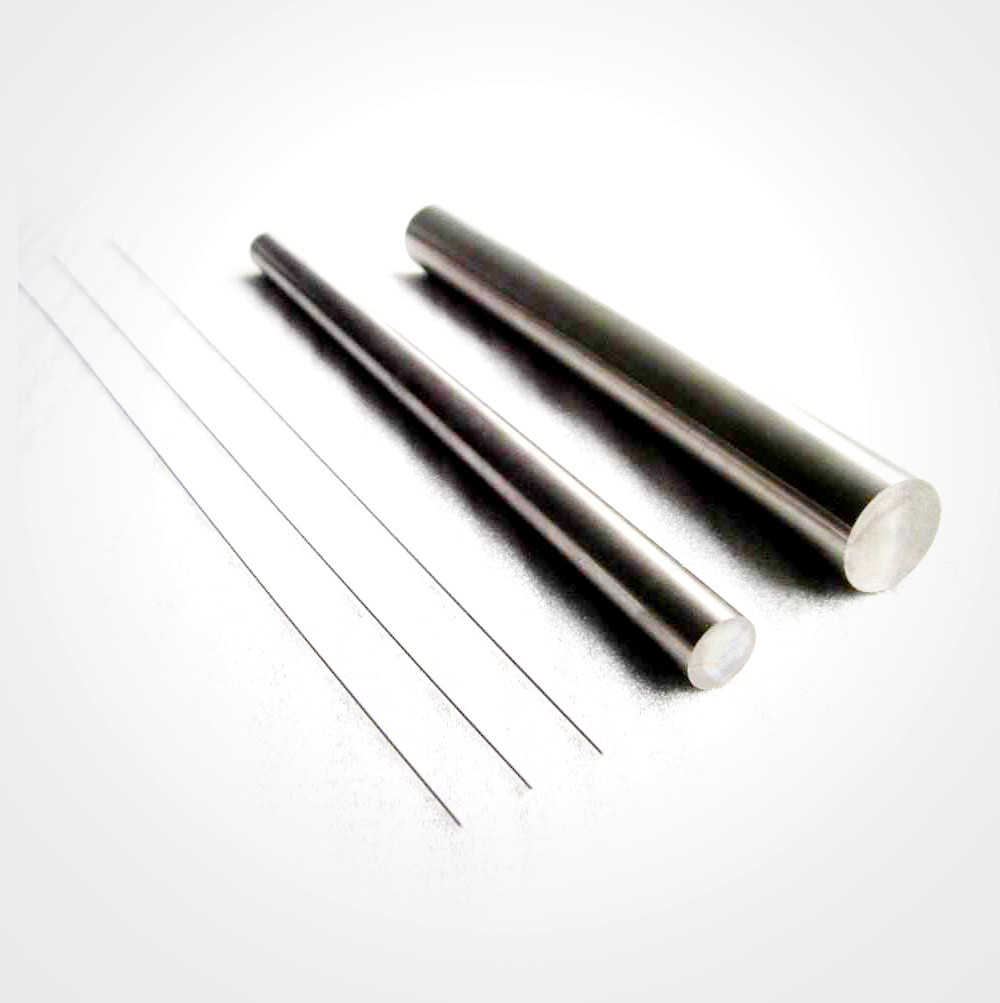

 High purity tungsten rod  High purity tungsten rod
High purity tungsten rod
Tungsten rods, tungsten bars and tungsten electrodes are finished products of pure tungsten metal processed by high temperature and high pressure. The appearance is black or bright silver depending on the processing technology. Tungsten rods have the characteristics of high melting point, low thermal expansion coefficient and good thermal conductivity, and are widely used in traditional industry and military.
